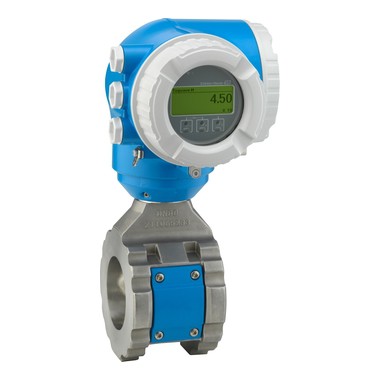

Proline Teqwave MW 300 —— 微波固体浓度计
在废水污泥处理过程中在线测量总固体浓度，搭配一体式变送器，操作简单
产品规格参数
测量范围
0 to 500 g/l (0 to 31 lb/ft3), 0 to 50 %TS
过程压力
PN 16, Class 150, 10K
应用领域
Teqwave MW 300是基于微波传输原理工作的在线测量仪表，安装在污水处理厂中实时测量总固体浓度。过程优化更快速高效，减少了实验室检测次数。持续输出可靠的测量结果，有助于改进固液分离效果，提高工厂运营安全性，及时响应过程变化。在污泥处理过程中，澄清、消化和脱水是典型应用。
Proline 300一体式变送器结构紧凑，安装灵活，满足各类操作环境和系统集成的要求。流量计支持单侧操作，提供远传显示和增强连接选项。自带网页服务器，可选配WLAN，有效简化了仪表操作，能够输出附加过程信息和设备信息。
优势
可靠的实时测量结果 —— 持续在线测量，保证高重复性
低维护需求 —— 测量管经过抛光处理，减小了黏附堆积，延长了清洗周期
减轻设计工作量 —— 搭配流量计可以计算污泥负荷率
更少测量点数量 —— 支持多参数测量（含固量、温度、电导率）
安装简单 —— 创新的传感器结构，采用网页服务器（可选配WLAN）等先进技术
完整查看过程信息和诊断信息 —— 用户灵活自定义输入/输出组合
配备自校验功能 —— 采用Heartbeat Technology心跳技术，无需中断过程即可进行在线仪表自校验
测量原理
Total solids measurement via microwave transmission
产品标题
Total solids measurement for the water and wastewater industry, with a compact, easily accessible transmitter..
Supports sludge treatment processes (from primary sludge to dewatered sludge)..传感器特点
Polished tube – less maintenance due to reduced adhesion. Fewer process measuring points – multivariable measurement (total solids, temperature, conductivity). Easy installation – proven sensor construction.
Repeatability (0.02%). Short installation length. Measuring up to 50% total solids content.变送器特点
Full access to process and diagnostic information –
numerous, freely combinable I/Os. Onboard load calculation –
less effort needed in programming. Integrated verification – Heartbeat Technology.
Compact dual-compartment housing with up to 3 I/Os. Backlit display with touch control and WLAN access. Remote display available.公称口径范围
DN 50 to 300
安装
Inline installation
材质
Measuring tube:
Stainless steel 1.4408 according to DIN EN 10213, CF3M according to ASME A351)
Temperature sensor:
1.4435 (316L)测量范围
0 to 500 g/l (0 to 31 lb/ft3), 0 to 50 %TS
过程压力
PN 16, Class 150, 10K
连接
Wafer
防护等级
IP66/67, Type 4X enclosure
显示/操作
4‐line backlit display with touch control (operation from outside)
Configuration via local display, web browser and operating tools possible输出
4-20mA HART, Modbus RS485
电源
AC 100 to 230 V / DC 24 V
产品安全性
CE Marking, UKCA Marking
防爆认证
ATEX, IECEx, CSA C/US
材料证书
3.1 material
计量认证和证书
Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation)
