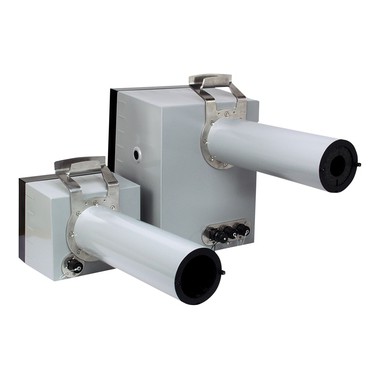

VICOTEC320
air quality measuring device
For ventilation control and accurate nitric oxide monitoring in road tunnels
产品规格参数
测量值
浑浊度 (K值), NO, NO2, NOx, CO, 温度
测量范围
K值: 0 ... 15 km⁻¹ / 0 ... 200 km⁻¹
NO: 0 ... 20 ppm / 0 ... 45 ppm
NO2: 0 ... 1 ppm / 0 ... 5 ppm
CO: 0 ... 100 ppm / 0 ... 300 ppm
温度: -25 ... +55 °C / -25 ... +75 °C一致性
ASTRA "Guideline - Ventilation of Road Tunnels" (2008)
RABT 2006
RVS 09.02.22
产品规格参数
测量值
浑浊度 (K值), NO, NO2, NOx, CO, 温度
测量范围
K值: 0 ... 15 km⁻¹ / 0 ... 200 km⁻¹
NO: 0 ... 20 ppm / 0 ... 45 ppm
NO2: 0 ... 1 ppm / 0 ... 5 ppm
CO: 0 ... 100 ppm / 0 ... 300 ppm
温度: -25 ... +55 °C / -25 ... +75 °C一致性
ASTRA "Guideline - Ventilation of Road Tunnels" (2008)
RABT 2006
RVS 09.02.22
应用领域
The VICOTEC320 measures very small concentrations of NO2 and NO as well as the visibility and temperature in road tunnels quickly and simultaneously. And all this using industry-proven components – without test gases for zero and reference point. An automated, cyclic adjustment of zero and reference point ensures exact values. The rugged housing even withstands thorough tunnel washing operations without any impairments.
Ventilation control and filter monitoring in tunnels
Monitoring of air quality in road tunnels
Device properties:
Very low detection limits for NO and NO2
Automatic function monitoring and self-adjustment
Very rugged design in stainless steel
Automatic beam alignment between sender/receiver unit and reflector
优势
Energy and cost savings for ventilation control due to very low zero offset and accurate measurement
Low operational costs because no air aspiration of ambient air and no test gases are required
Low maintenance requirements due to long maintenance interval (approx. 1 year)
测量原理
差分光吸收光谱法（DOAS）、透射率测量、电化学电池、电阻温度计
测量值
浑浊度 (K值), NO, NO2, NOx, CO, 温度
测量范围
K值: 0 ... 15 km⁻¹ / 0 ... 200 km⁻¹
NO: 0 ... 20 ppm / 0 ... 45 ppm
NO2: 0 ... 1 ppm / 0 ... 5 ppm
CO: 0 ... 100 ppm / 0 ... 300 ppm
温度: -25 ... +55 °C / -25 ... +75 °C环境温度
-20 °C ... +55 °C
CO sensor: -20 °C ... +55 °C环境湿度
10 % ... 95 %
相对湿度; 非冷凝防护等级
IP69K
一致性
ASTRA "Guideline - Ventilation of Road Tunnels" (2008)
RABT 2006
RVS 09.02.22电气安全性
CE认证
