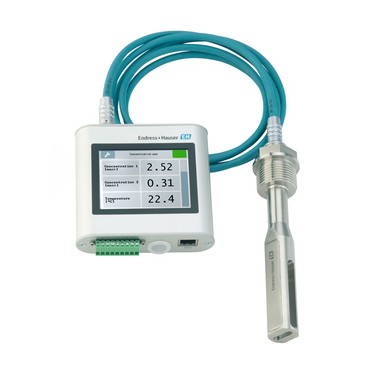

Teqwave I：超声波浓度测量仪表
智能、灵活的插入式测量仪表，为您的过程量身定制
产品规格参数
最大测量误差
Acoustic density: ±0.01g/cm³
Temperature: ±0.5K
Sound velocity: +-2m/s测量范围
浓度符合浓度app中的数据表，最大为0...100 %
声速：600...2000 m/s
温度浓度app数据表，最高0...+100 °C (32...+212 °F)
密度：0.7...1.5 g/cm³介质温度范围
0...100 °C (32...212 °F)
过程温度
0 to 100 °C (32 to 212 °F)
最大过程压力
最大16 bar (232 psi)，20 °C (68 °F)时
过程压力
max. 16 bar at 20 °C (232 psi at 68 °F)
接液部件材质
Stainless steel 1.4571 (316 Ti), others on request
应用领域
插入式测量仪表Teqwave I专用于在容器或大口径管道中进行实时高精度液体分析。Teqwave能够进行在线浓度测量，可同时监测不同的测量值，降低了撬装设备的运行成本。Teqwave变送器能够针对您的生产需求优化：您可以灵活地设定和扩展应用范围。
波导声学监测技术测量精准可靠，即使是微小变化也可以安全检测
能够连续测量容器或大口径管道中液体的浓度
仪表特点
插入深度：180 mm (7") 或 500 mm (20")
高测量精度，不受流形的影响
符合工业标准，便捷地安装在DIN导轨上
3.5" TFT彩色触摸屏或LED指示灯标识
4...20 mA、Modbus TCP
优势
使用简单、高效：实时在线液体分析
完全透明：不间断监测产品质量，无需抽检
最高过程安全性：传感器坚固耐用，免维护，计量可靠
使用经济：多变量测量所需测量点数量更少
按需定制：创新的应用理念，可改造升级，轻松应对各类测量任务
简化过程控制：操作友好，状态显示清晰
现场数据备份：内置测量值数据存储单元，保存时间长达7.5年
测量原理
Ultrasonic concentration
产品标题
Smart, flexible insertion measuring device – individually for your process.
Easy and efficient – real-time in situ liquid analysis.
Continuous concentration measurement of liquids in vessels or large pipes.传感器特点
Full transparency – constant monitoring of product quality without sampling. Highest process safety – reliable metering due to robust, maintenance-free sensor. Cost-saving – fewer measuring points due to multivariable measurement.
Insertion length: 180 mm (7 in) or 500 mm (20 in). Accurate and independent of flow profile.变送器特点
Customized usage – innovative application concept, expendable for changing measuring tasks. Simplified process control – user-friendly operation and clear status visualization. Local data backup – integrated data storage for measured values up to 7,5 years.
Industry-compliant, easy installation via DIN rail. 3.5" TFT color touch screen or LED indication. 4-20 mA, Modbus TCP.公称口径范围
Insertion length: 180 mm (7") or 500 mm (20")
测量变量
Concentration, sound velocity, temperature, acoustic density, dispersion
最大测量误差
Acoustic density: ±0.01g/cm³
Temperature: ±0.5K
Sound velocity: +-2m/s设计
Insertion
材质
Material sensor: Stainless steel 1.4571 (316Ti)
Material transmitter housing: Aluminium anodized and glas过程温度
0 to 100 °C (32 to 212 °F)
过程压力
max. 16 bar at 20 °C (232 psi at 68 °F)
防爆认证
Non-hazardous area
防护等级
Sensor: IP68 (with plugged-in cable)
Transmitter: IP40显示/操作
LED status indication
TFT color touch display输出
Modbus TCP, Relay (AC 50V, DC30V 1A), 4-20mA/0 to 10V Analog output
电源
DC 24V +-20%
产品安全性
CE, UKCA, RCM
