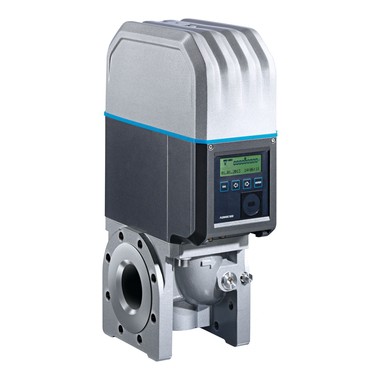

FLOWSIC500
ultrasonic flowmeter
Custody transfer measurement in natural gas distribution
产品规格参数
测量值
工况累计流量，工况瞬时流量，气体流速
另外集成了流量计算功能：标况累积体积流量、标况瞬时体积流量测量介质
天然气（干燥，加臭的），氢含量高达 30% 的天然气
流量计口径
DN 50 (2") … DN 150 (6")
应用领域
The FLOWSIC500 ultrasonic flowmeter enables extremely accurate natural gas distribution measurement. It is overload-proof, accurate and is monitored by an intelligent diagnostics system. It can easily be integrated into existing measuring stations. It operates either in a self-sufficient energy configuration or in failsafe network operation with battery back-up. It complies with all pertinent standards and directives and provides the security of a continuous and blockage-free gas supply.
Natural gas distribution in transfer and measuring stations for municipal and regional gas suppliers
Measuring stations in industrial and commercial applications
Device properties:
Diagnostics and permanent operational check
Rugged and reliable due to lack of moving parts
Exchangeable cartridge
Straight inlet/outlet zone not required
Overload-proof
Optional integrated flow conversion / date registration
Battery or intrinsically safe power supply
优势
Highest measurement certainty and safety of continuous gas supply
Reduction of installation costs due to integrated flow conversion
Simple installation, compatible with conventional technologies (turbine and rotary
displacement meters)Minimal operating costs due to being nearly maintenance-free
Simplified recalibration due to straightforward cartridge exchange
Reliable under dynamic load changes
Self-sufficient operation
测量原理
超声波传递时间差测量
测量值
工况累计流量，工况瞬时流量，气体流速
另外集成了流量计算功能：标况累积体积流量、标况瞬时体积流量测量介质
天然气（干燥，加臭的），氢含量高达 30% 的天然气
重复性
测量准确度
Qmin up to 0.1 Qmax ≤ ± 1 %
0.1 Qmax up to Qmax ≤ ± 0.5 %
精度等级 1 ；最大允许误差极限
Qmin up to 0.1 Qmax ≤ ± 2 %
0.1 Qmax up to Qmax ≤ ± 1 %
高压流量校准后：测试压力时为 ± 0.2%，否则为 ± 0.5%气体温度
-25 °C ... +60 °C
(可选) –40 °C ... +70 °C
(–13 °F ... +140 °F
可选: –40 °F ... +158 °F)运行压力
PN16 (EN 1092-1): 0 bar (g) … 16 bar (g)
Class 150 (ASME B16.5): 0 bar (g) … 20 bar (g)流量计口径
DN 50 (2") … DN 150 (6")
符合性声明
MID: 2014/32/EU
OIML R 137-1&2:2012
EN 12405: 2010 (集成了流量计算功能)防爆许可
IECEx
Ex ia [ia] IIC T4 Gb, Ex op is IIC T4 Gb
ATEX
II 2G Ex ia [ia] IIC T4 Gb, II 2G Ex op is IIC T4 Gb
NEC/CEC (US/CA)
CSA: I.S. for Class 1 Division 1 Groups C and D T4; Ex/AEx ia IIB T4 Ga数字输出
低频脉冲 + 故障，电隔离 (fmax = 100 Hz)
高频脉冲 + 故障，电隔离 (fmax = 2 kHz)
编码器 + 低频脉冲，电隔离 (fmax = 100 Hz)
编码器 + 高频脉冲，非电隔离 (fmax = 2 kHz)
2 x 低频脉冲，电隔离 (fmax = 2 kHz / 100 Hz)数字通讯
R-S485 (外部供电，结合低频或高频脉冲)
